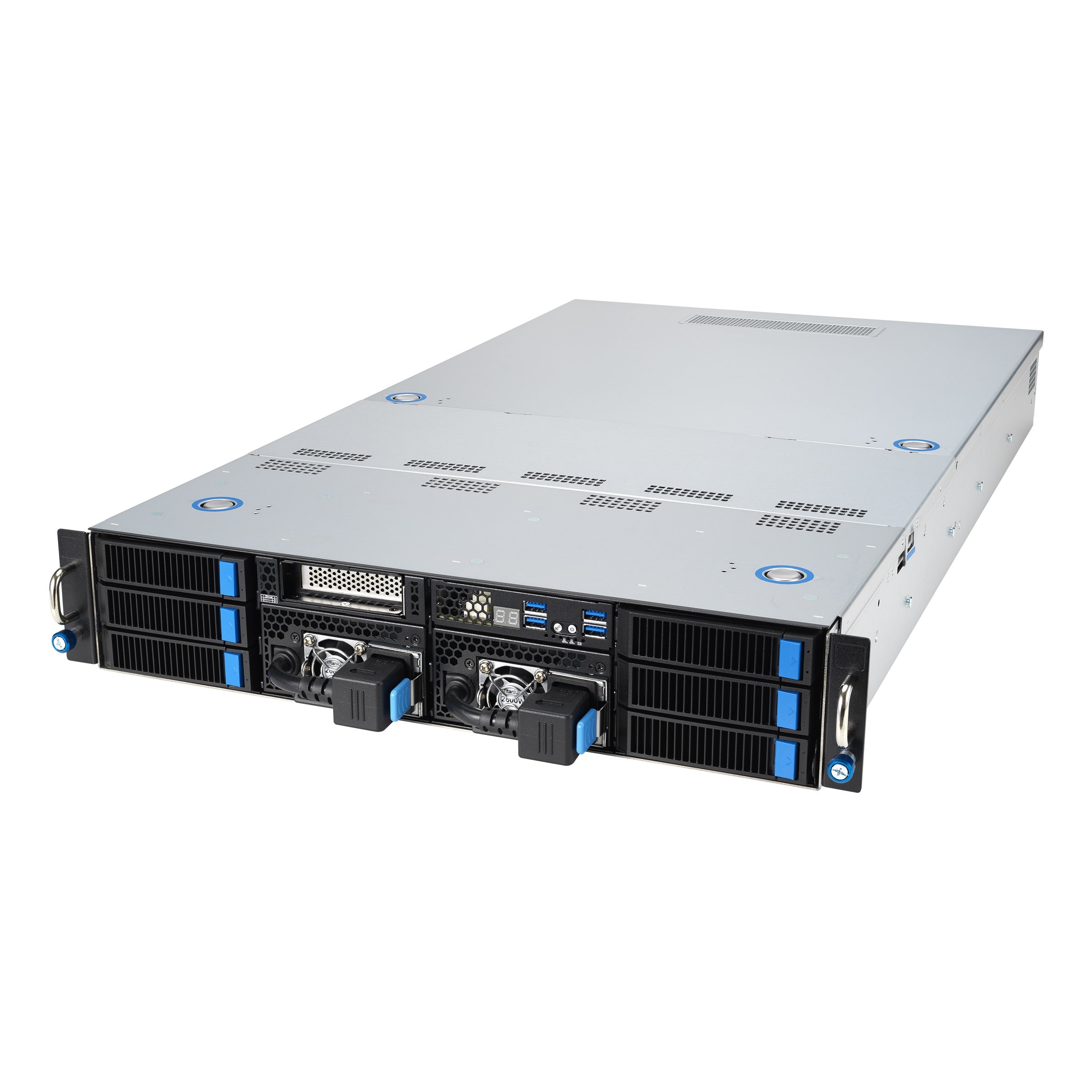

GPU SERVER - ASUS ESC4000-E11 - NVIDIA L4 L40 L40S IA + LLM

SERVIDOR RACKEABLE ASUS ESC4000-E11
Procesadores Intel Xeon 4th y 5th
4TB RAM
NVME  SSD
Doble fuente 2600W 1+1

Placas gráficas NVIDIA Blackwell y toda la linea L
L4
L40
L40s

• Processor / System Bus

  2 x Socket

  4th Gen Intel® Xeon® Scalable processors (Up to 350W)
  5th Gen Intel® Xeon® Scalable processors (Up to 350W)

• Core Logic

  Intel® C741 Chipset

• Memory

  Total Slots:
  16 (8 channels per CPU, 8 DIMM per CPU)
  Capacity:
  Maximum up to 4TB per CPU socket
  Memory Type:
  4th: DDR5 4800 MHz RDIMM/3DS RDIMM (1DPC)
  5th: DDR5 5600/4800 MHz RDIMM/3DS RDIMM (1DPC)
  512GB, 256GB, 128GB Intel® Optane™ persistent memory 300 series

• Expansion Slots

  Rear:
  4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or
  8 x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards
  -2 x PCIe x16 slots (Gen5 x16 link, FH, HL)
  Front:
  1 x PCIe x8 slot (Gen4 x8 link, LP, HL)

• Storage

  2 x 2.5” & 4 x 3.5“ Hot-swap Storage Bays
  SKU1:
  2 x 2.5” SATA/SAS*/NVMe +
  2 x 3.5” SATA/SAS*/NVMe + 2 x 3.5” SATA/SAS*
  SKU2: Build to order
  2 x 2.5” SATA/SAS*/NVMe +
  4 x 3.5” SATA/SAS*/NVMe (Occupy 1 x PCIe x8 link )
  *SAS support required a HBA/RAID card.
  **For SKU1 additional 2 x NVMe support required a RAID card.

  1 x M.2 socket (Gen3 x4 link PCIe mode, up to 2280)

• Networking

  2 x 1 Gigabit LAN ports (Intel I350 Controller)
  1 x Management Port

• Multi-GPU Support

  Please find the latest GPU support from https://servers.asus.com/support/gpu

• Front I/O Ports

  4 x USB 3.2 Gen1 ports

• Rear I/O Ports

  2 x USB 3.2 Gen1 ports
  2 x Gigabit LAN ports (RJ45)
  1 x MAnagement port (RJ45)
  1 x VGA port

• Switch/LED

  Front :
  1 x Power Button/LED
  1 x Location Button/LED
  1 x Message LED
  1 x Q-Code/Port 80 LED
  2 x LAN LED
  Rear :
  1 x Power Button/LED
  1 x Location LED
  1 x Message LED

• OS Support

  Windows Server
  RedHat® Enterprise Linux
  SuSE® Linux Enterprise Server
  CentOS
  Ubuntu
  Vmware



• Management Solution

  ASUS Control Center
  ASUS ASMB11-iKVM (on-board)

• Regulatory Compliance

  BSMI, CE, RCM, FCC(Class A)

• Dimensions

  800mm x 439.5mm x 88.9mm (2U)
  31.50" x 17.30" x 3.50"

• Weight

  Net Weight: 26 Kg
  Gross Weight: 36.8 Kg

• Power Supply

  1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply


  *2600W PSU supports 1+1 redundant with GPU card power consumption ≦ 300W

• Environment

  Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% ( Non condensing)
